#LIFTDIFFERENT

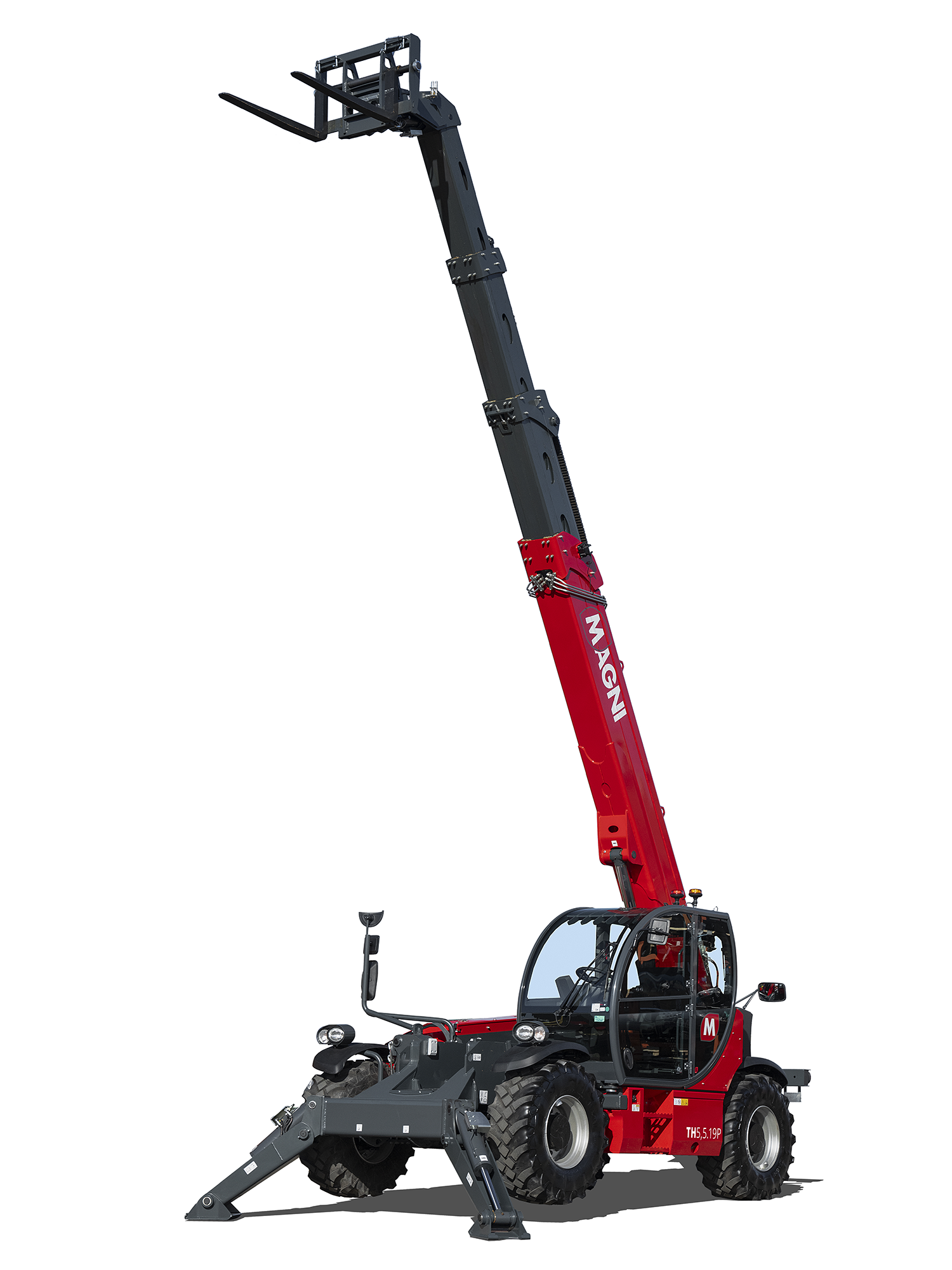

Telehandler (TH)

Safe, durable, and dependable, our fixed telehandler range blends advanced craftsmanship with cutting-edge technology to deliver top-tier performance in every task. Select the ideal Magni model to meet your requirements. The TH series offers exceptional versatility, making it suitable for various industries, including construction, mining, and industrial applications, ensuring the perfect solution for every job.

Lifting Capacity: 4,5 t - 7 t
Max Height: 8 m - 24 m

Model & Specifications

TH 3.6 - TH 7.10 P

Model	Max lifting height [m]	Max operating capacity [Kg]	Stabilizing system	Engine	Emissions Standard	Engine Power [kW/HP]	Speed [km/h]	Length [mm]	Widht [mm]	Tyres [size]	Weight [Kg]
TH 3.6	5,80	3000	n.a.	Deutz	Stage III	55Kw/75HP	35	3.780	1.800	300/75 R18	4.900
TH 4,5.15	15,20	4500	Pivoting	Deutz	Stage III	55Kw/75HP	25	6.350	2.500	445/65 R22,5	12.200
TH 4,5.15 P	15,20	4500	Pivoting	Deutz	Stage III	75kW/102HP	35	6.350	2.500	445/65 R22,5	12.200
TH 4,5.19	18,80	4500	Pivoting	Deutz	Stage III	55Kw/75HP	25	6.350	2.500	445/65 R22,5	12.700
TH 4,5.19 P	18,80	4500	Pivoting	Deutz	Stage III	75Kw/102HP	35	6.350	2.500	445/65 R22,5	12.700
TH 5.8 P	7,60	5000	n.a.	Deutz	Stage III	75kW/102HP	35	5.230	2.500	445/65 R22,5	9.000
TH 5,5.15	15,20	5500	Pivoting	Deutz	Stage III	55Kw/75HP	25	6.390	2.500	445/65 R22,5	13.000
TH 5,5.15 P	15,20	5500	Pivoting	Deutz	Stage III	75kW/102HP	35	6.390	2.500	445/65 R22,5	13.000
TH 5,5.19	18,80	5500	Pivoting	Deutz	Stage III	55Kw/75HP	25	6.390	2.500	445/65 R22,5	13.500
TH 5,5.19 P	18,80	5500	Pivoting	Deutz	Stage III	75kW/102HP	35	6.390	2.500	445/65 R22,5	13.500
TH 5,5.24	23,70	5500	Pivoting	Deutz	Stage III	100Kw/136HP	40	6.895	2.500	445/65 R22,5	16.100
TH 6.20	19,40	6000	Pivoting	Deutz	Stage III	100Kw/136HP	40	6.420	2.500	445/65 R22,5	14.200
TH 7.10	9,50	7000	n.a.	Deutz	Stage III	55Kw/75HP	25	6.080	2.500	445/65 R22,5	11.900
TH 7.10 P	9,50	7000	n.a.	Deutz	Stage III	75kW/102HP	35	6.080	2.500	445/65 R22,5	11.900

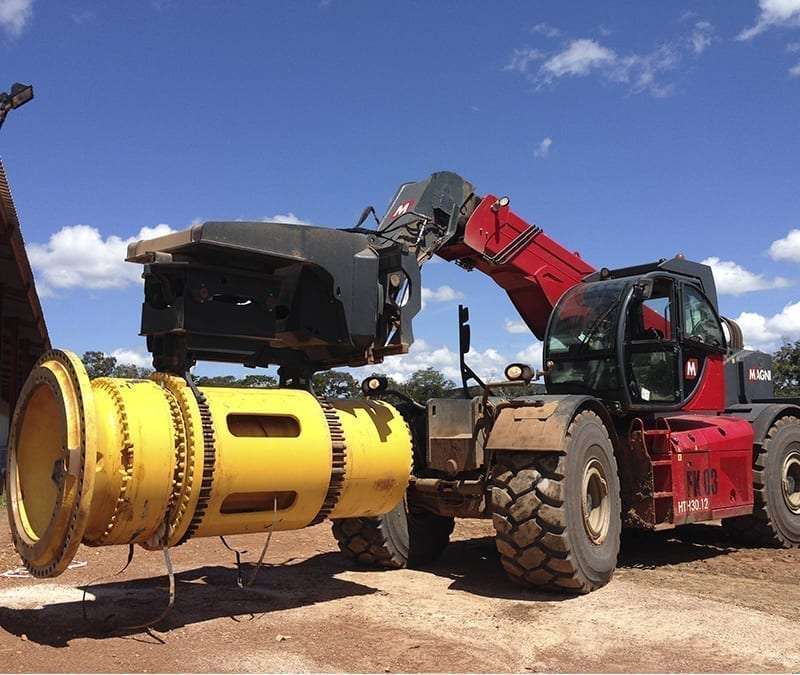

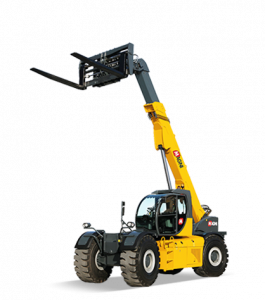

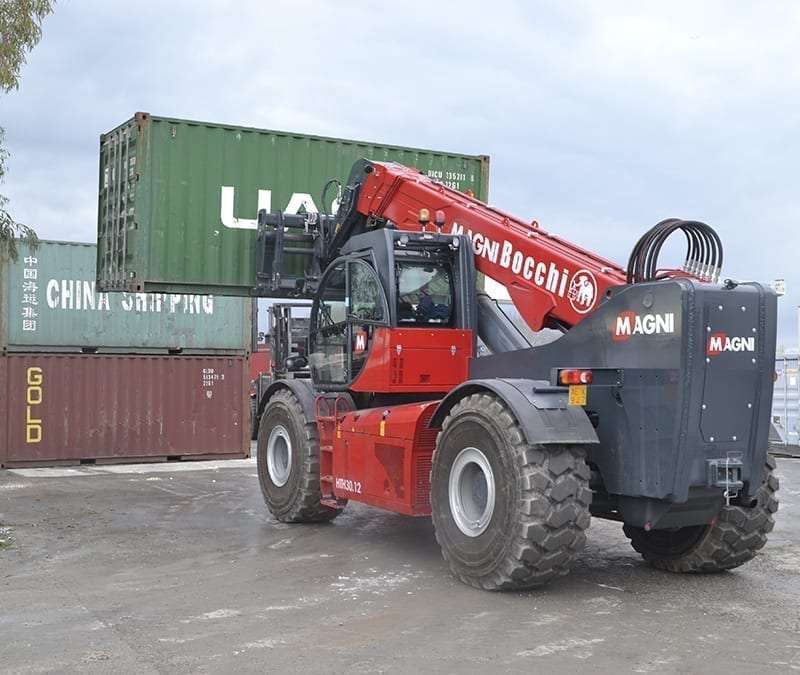

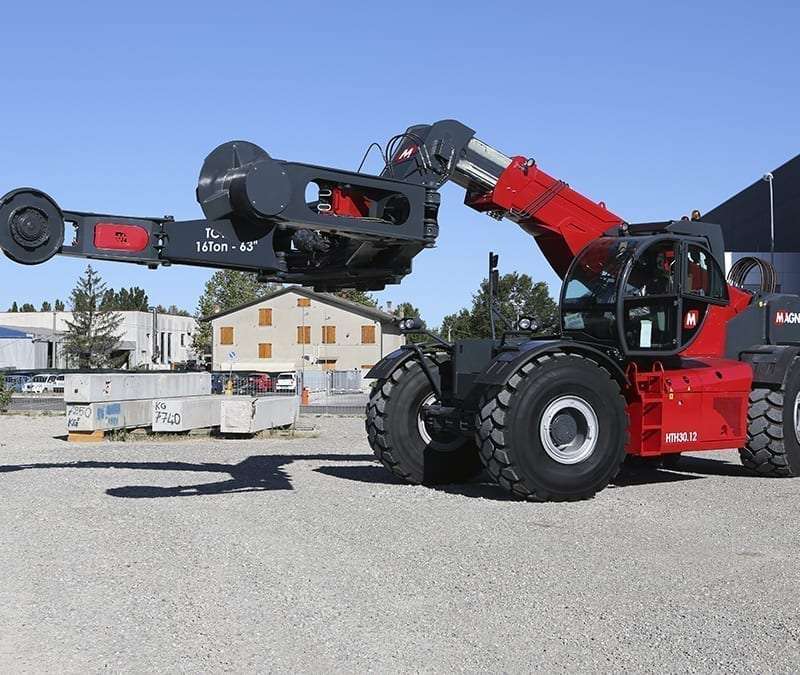

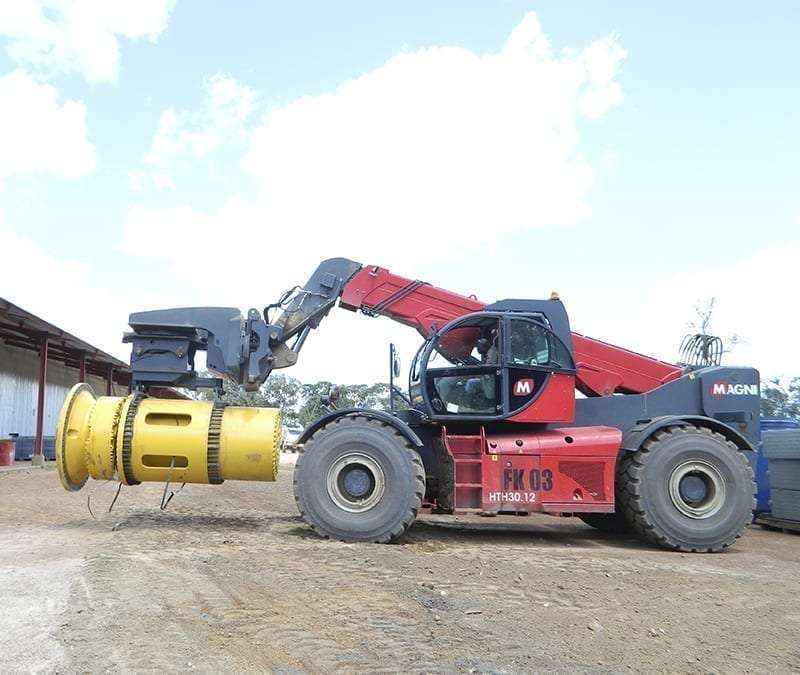

Heavy-Duty Telehandler (HTH)

Magni's heavy-duty telescopic handlers, with payload capacities ranging from 10 to 45 tonnes, are perfectly suited for demanding tasks in manufacturing, ports, and mining. These machines offer exceptional maneuverability and outstanding stability, designed specifically to handle the toughest challenges. They are the ultimate choice for those seeking reliability and high performance in extreme conditions, standing as unrivaled leaders in heavy-duty operations.

Lifting Capacity: 10 t - 50 t
Max Height: 10 m - 14 m

Model & Specifications

HTH 10.10 - HTH 50.14

Model	Max lifting height [m]	Max operating capacity [Kg]	Engine	Emissions Standard	Engine Power [kW/HP]	Speed [km/h]	Length [mm]	Widht [mm]	Tyres [size]	Weight [Kg]
HTH 10.10	9,50	10.000	Deutz	Stage III	100Kw/136HP	40	5.660	2.550	445/65 R22,5	13.500
HTH 12.10	9,50	12.250	Deutz	Stage III	100Kw/136HP	40	5.660	2.550	445/65 R22,5	14.400
HTH 16.10	9,70	16.000	VOLVO	Stage III	160kW/218HP	25	6.380	2.550	16,00 R25	19.500

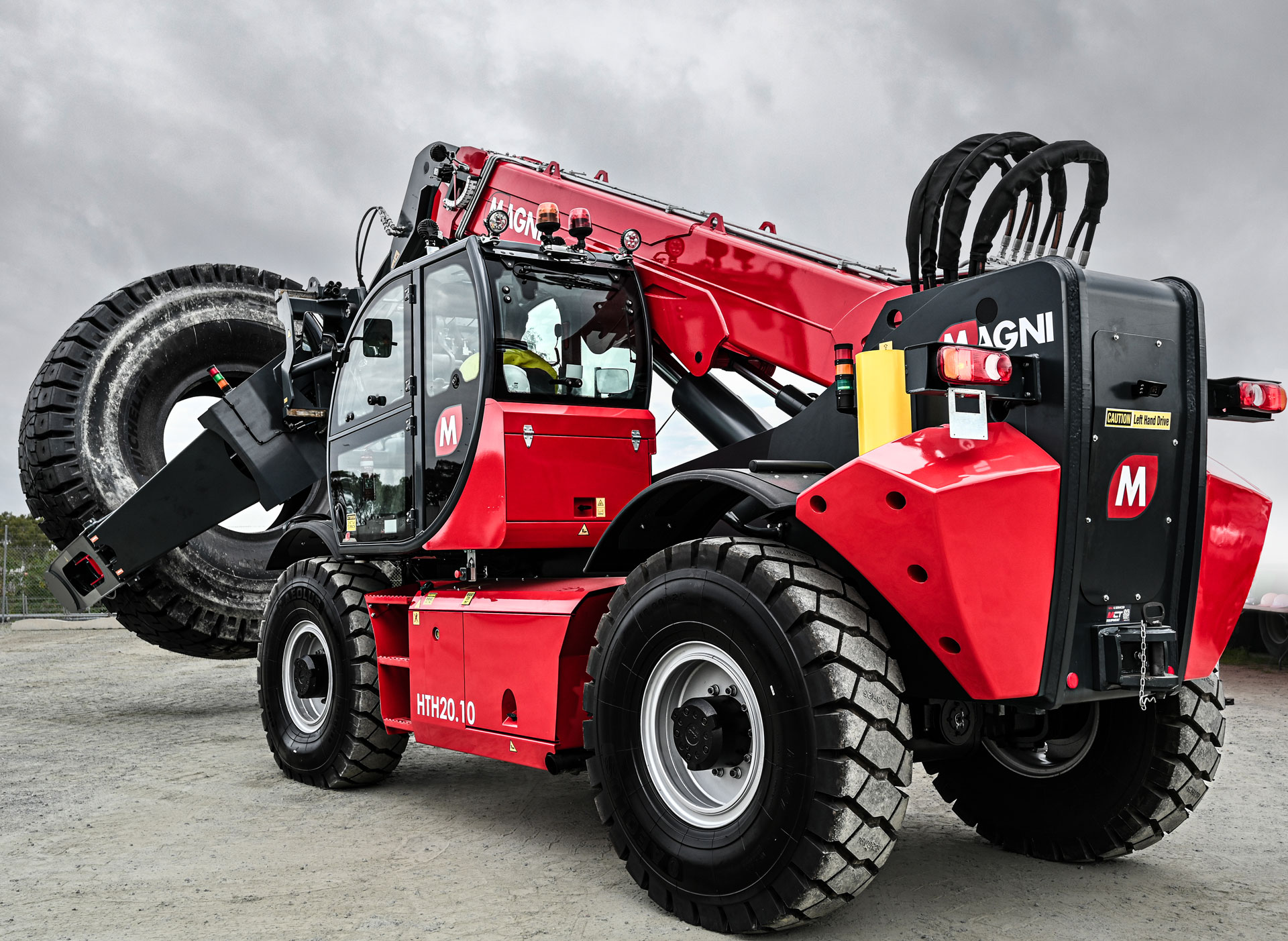

HTH 20.10	9,70	19.999	VOLVO	Stage III	160kW/218HP	25	6.425	2.550	16,00 R25	24.500
HTH 24.11	10,55	24.000	VOLVO	Stage III	175kW/238HP	25	6.920	2.960	18,00 R25	30.000
HTH 27.11	10,90	27.000	VOLVO	Stage III	175kW/238HP	25	7.550	2.975	26,5 R25	37.200

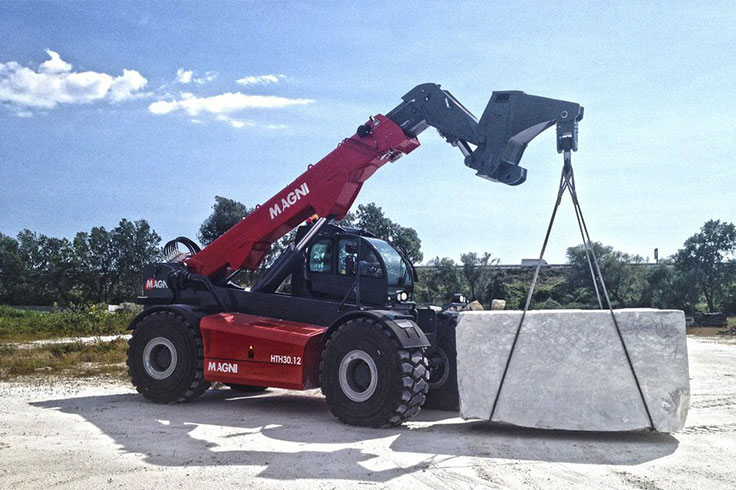

HTH 30.12	11,40	30.000	VOLVO	Stage III	250kW/340HP	25	7.950	3.000	29,5 R25	40.900
HTH 35.12	11,40	35.000	VOLVO	Stage III	250kW/340HP	25	7.950	3.000	29,5 R25	46.000
HTH 50.14	AUR	AUR	AUR	AUR	AUR	AUR	AUR	AUR	AUR	AUR

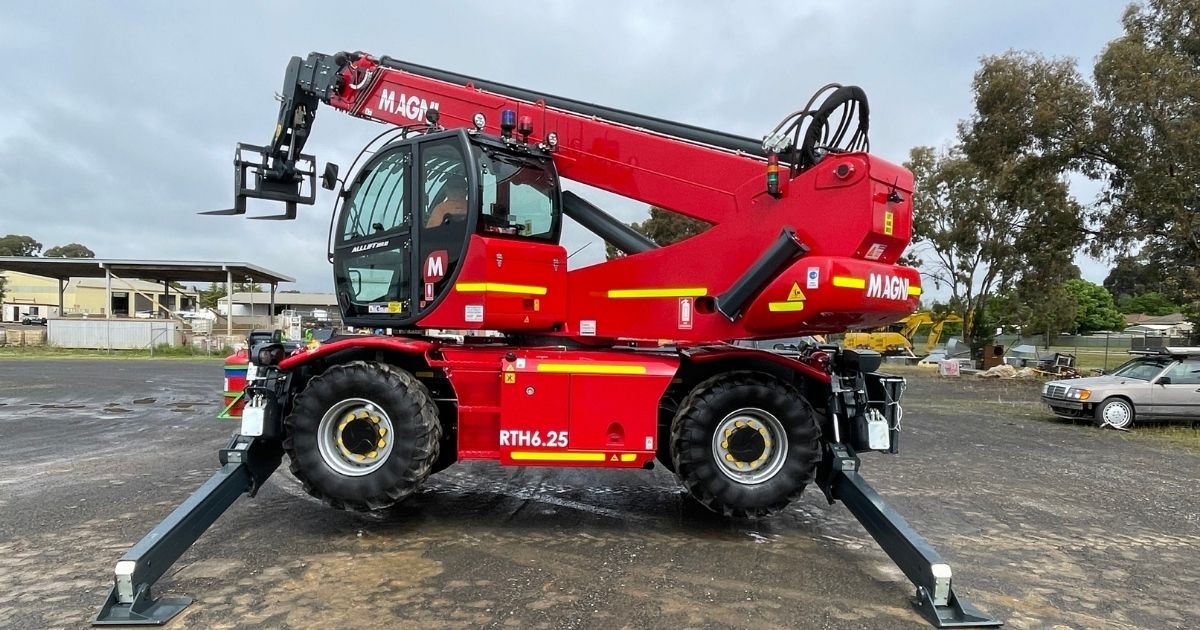

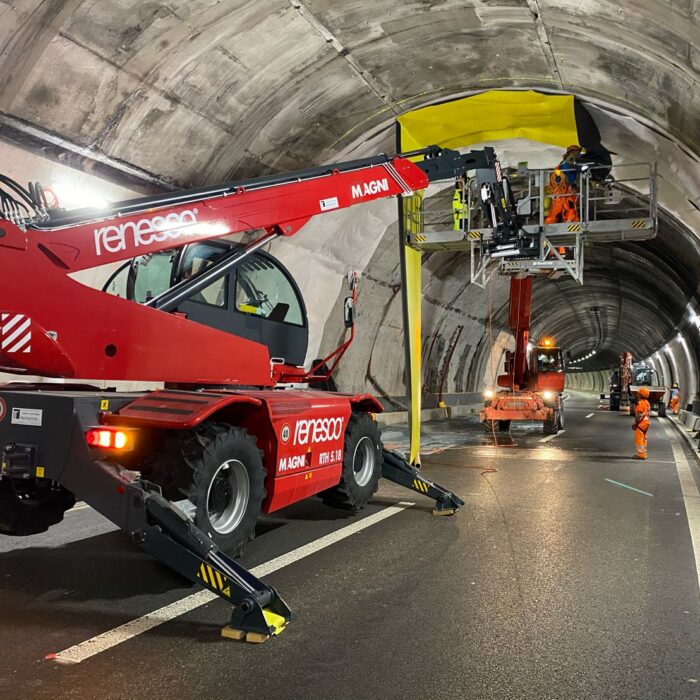

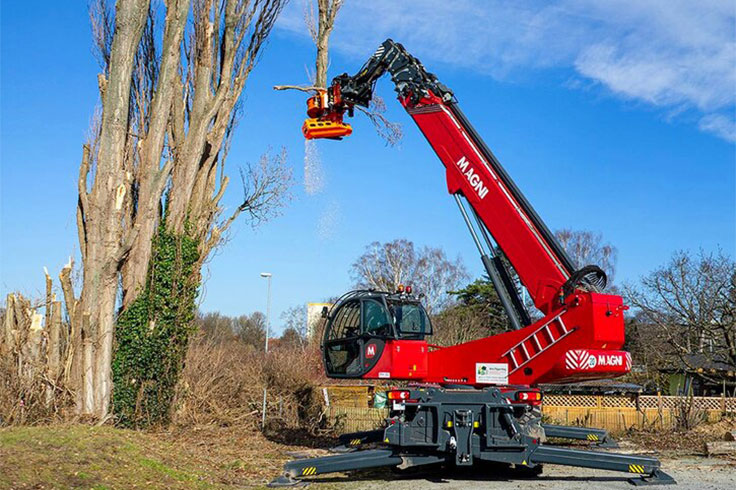

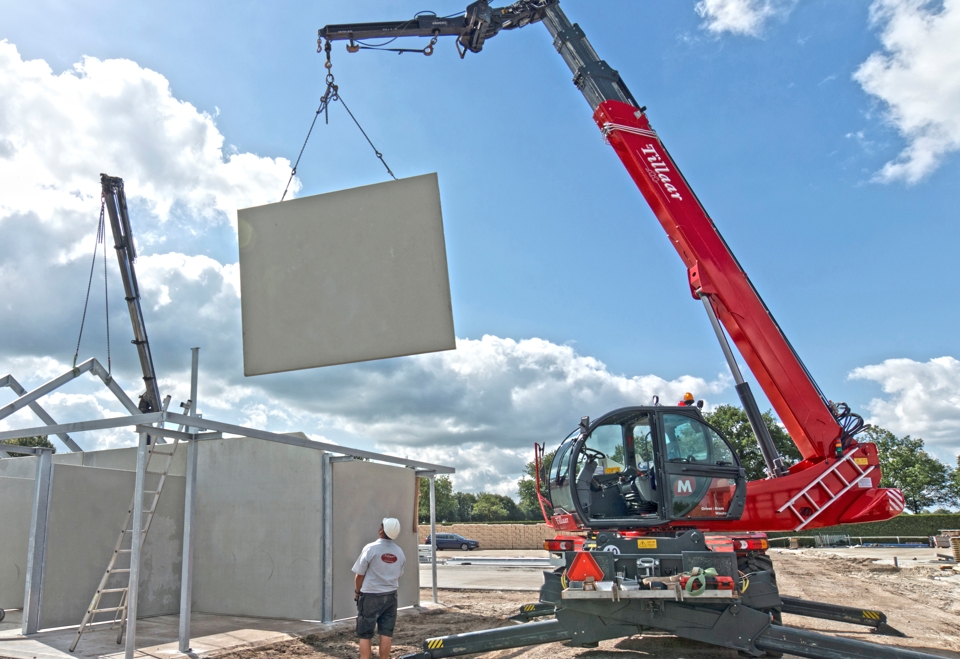

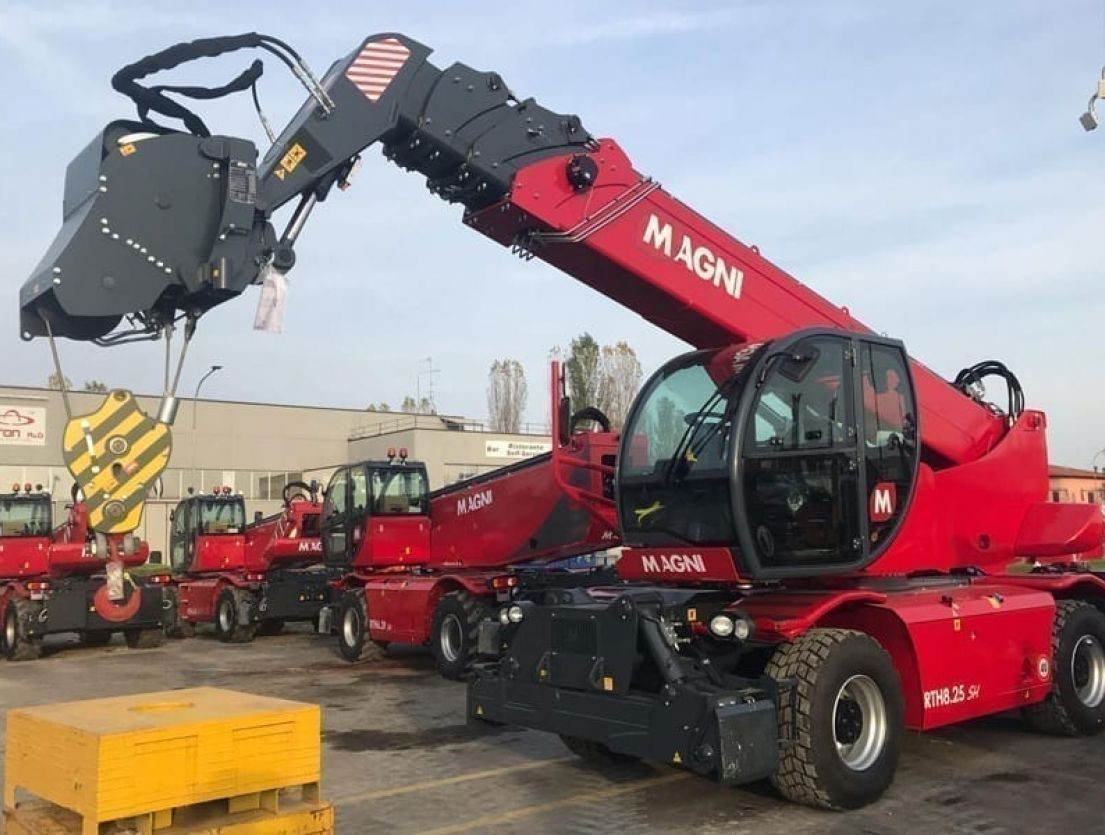

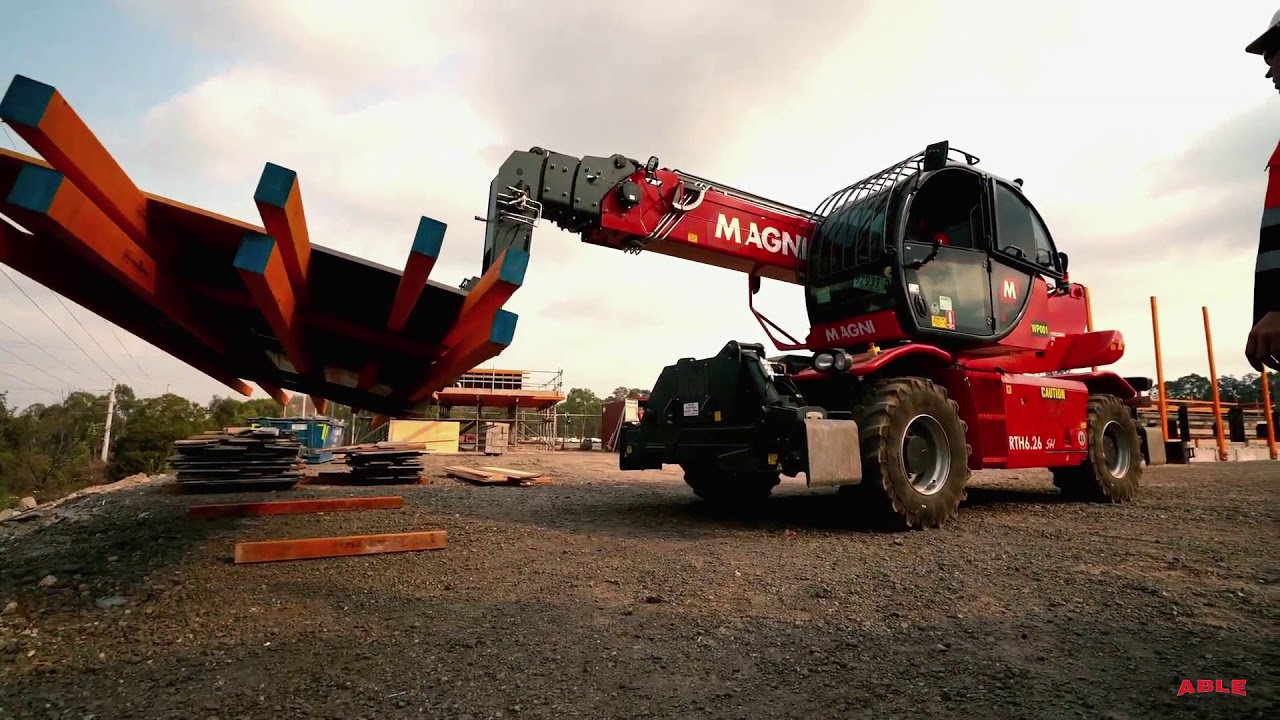

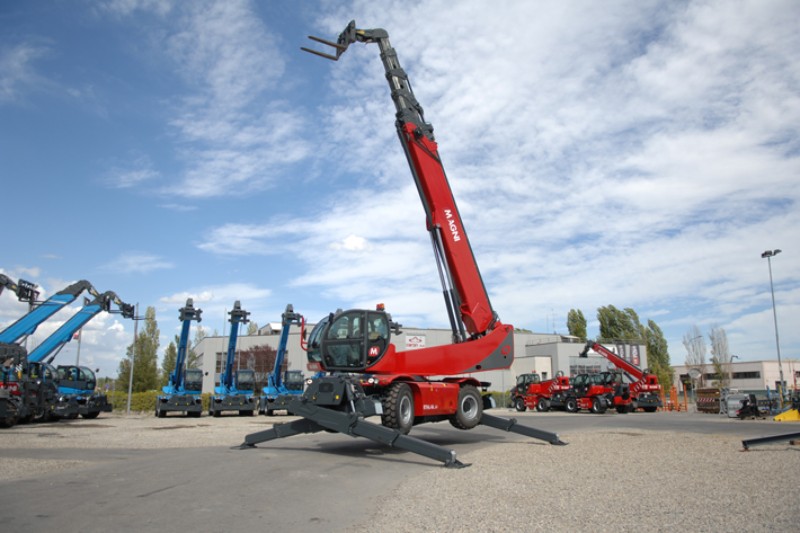

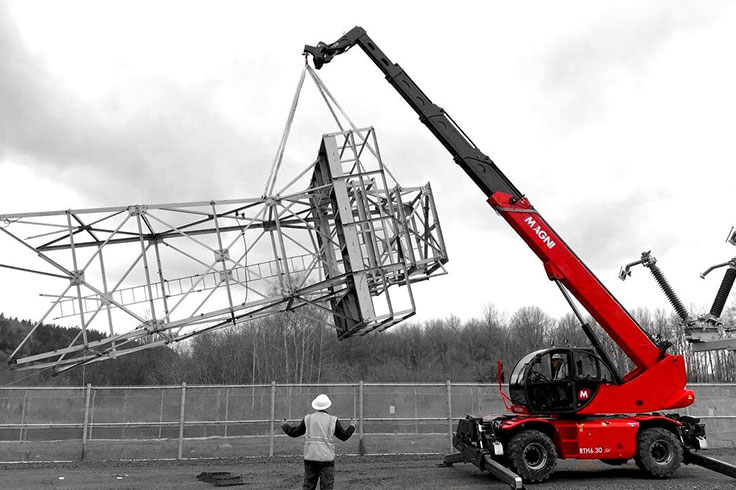

Rotating Telehandler (RTH)

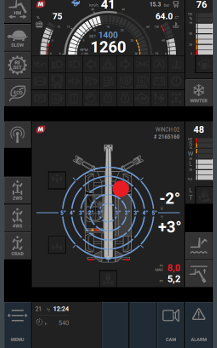

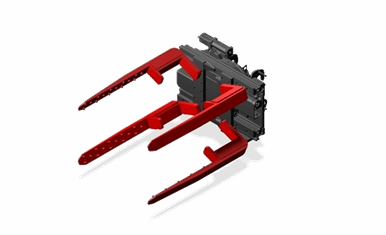

Rotating telehandlers are highly adaptable and multifunctional machines, designed to handle a wide range of tasks. They can be fitted with various attachments, including forks, winches, and platforms, and feature a 360° rotation capability. Magni lifts ensure maximum safety during operation, thanks to a patented load control system that identifies potential overload risks and prevents dangerous movements. These 3-in-1 machines embody reliability and efficiency, making them an essential tool for diverse applications.

Lifting Capacity: 5 t - 13 t
Max Height: 18 m - 51 m

Model & Specifications

RTH 4.18 – RTH 13.26

Model	Max lifting height [m]	Max operating capacity [Kg]	Stabilizing system	Rotation	Engine	Emissions Standard	Engine Power [kW/HP]	Speed [km/h]	Length [mm]	Widht [mm]	Tyres [size]	Weight [Kg]

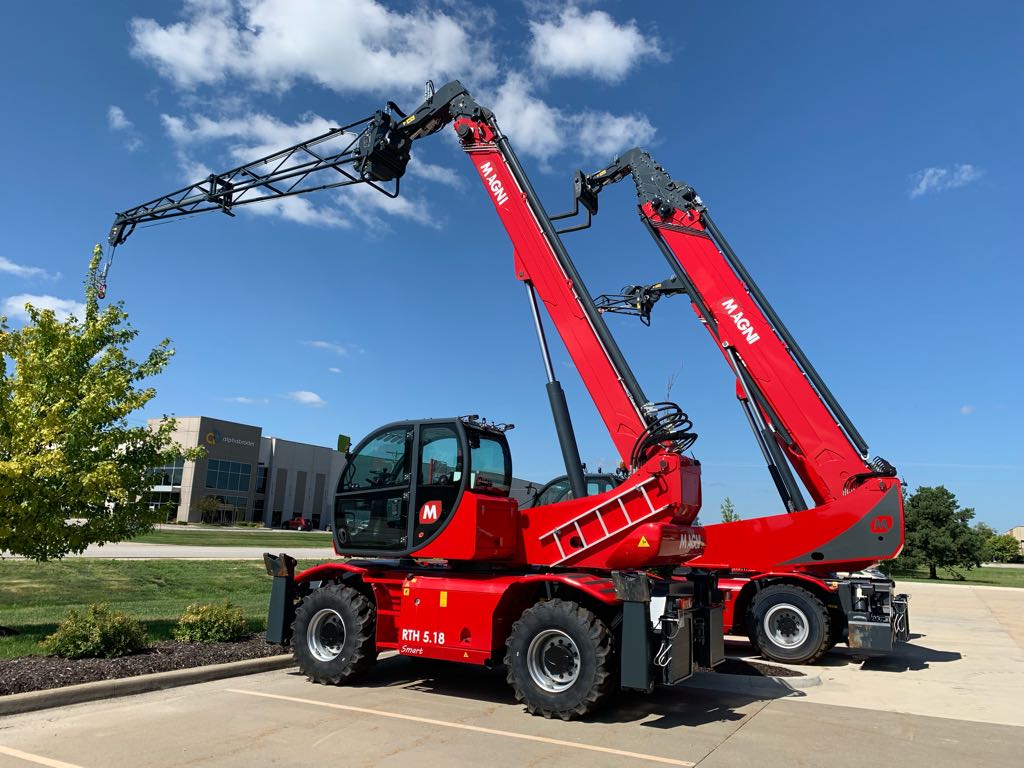

RTH 5.18	17,40	4999	Pivoting	Continuous	Deutz	Stage III	55Kw/75HP	25	6.690	2.540	445/65 R19,5	14400

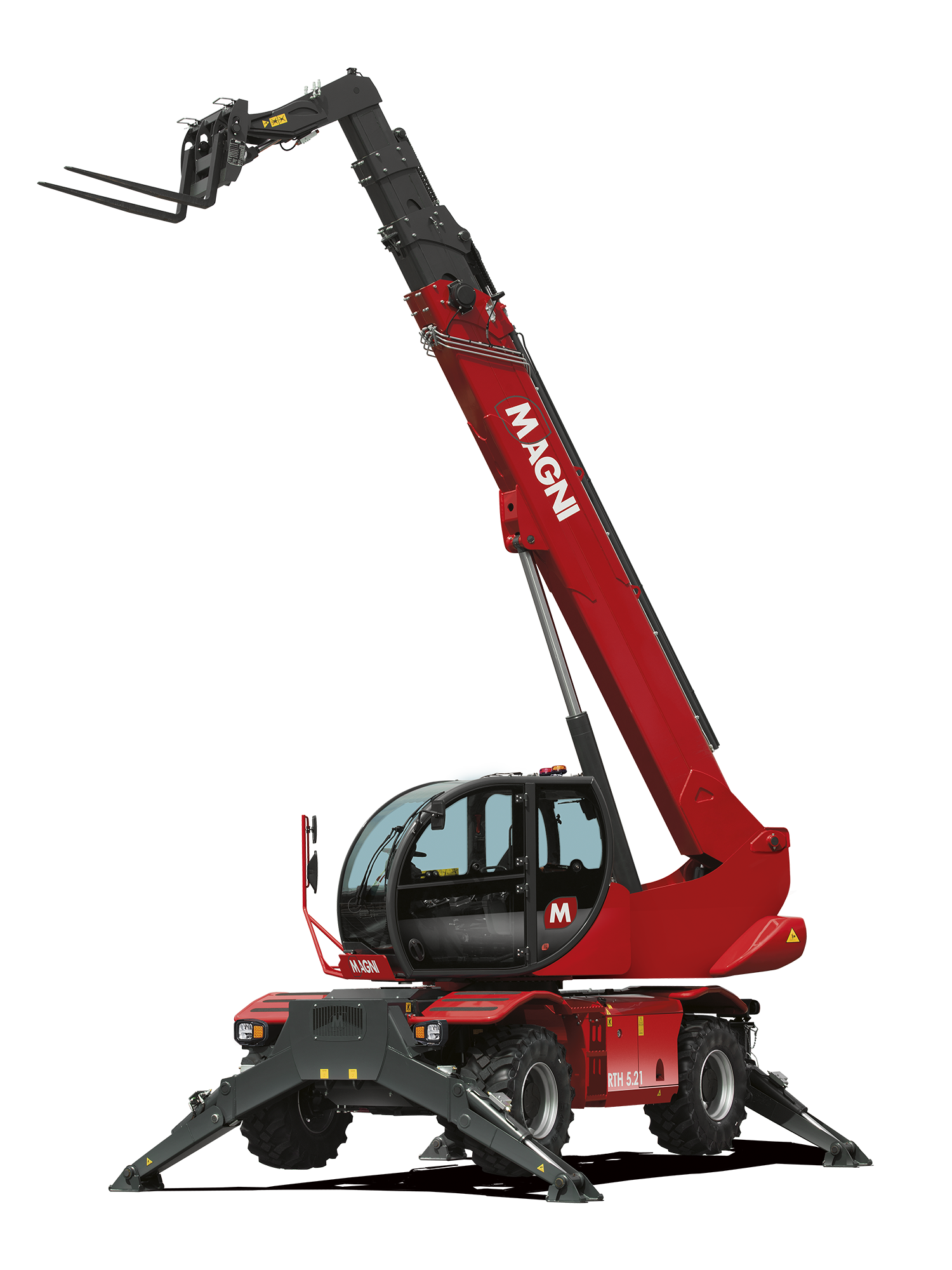

RTH 5.21	20,50	4999	Pivoting	Continuous	Deutz	Stage III	100Kw/136HP	40	6.480	2.530	445/65 R22,5	15900
RTH 5.23	22,80	5000	Pivoting	Continuous	Deutz	Stage III	100Kw/136HP	40	7.060	2.550	445/65 R22,5	16400
RTH 5.25	24,60	5000	Pivoting	Continuous	Deutz	Stage III	100Kw/136HP	40	7.510	2.530	445/65 R22,5	16600
RTH 6.22	22,00	6000	Scissors	Continuous	Deutz	Stage III	100Kw/136HP	40	6.870	2.530	445/65 R22,5	19100
RTH 6.22 EC	22,00	6000	Scissors	Continuous	Deutz	Stage III	100Kw/136HP	40*	6.870	2.530	445/65 R22,5	20100
RTH 6.26	25,80	6000	Scissors	Continuous	Deutz	Stage III	100Kw/136HP	40	7.630	2.530	445/65 R22,5	19600
RTH 6.26 EC	25,80	6000	Scissors	Continuous	Deutz	Stage III	100Kw/136HP	40*	7.630	2.530	445/65 R22,5	20600
RTH 6.31	30,80	6000	Scissors	Continuous	Deutz	Stage III	160kW/218HP	40	7.830	2.530	445/65 R22,5	22700
RTH 6.31 EC	30,80	6000	Scissors	Continuous	Deutz	Stage III	160kW/218HP	40*	7.830	2.530	445/65 R22,5	23700
RTH 6.51	51,00	6000	Scissors	Continuous	Deutz	Stage III	175kW/238HP	25	10.200	2.540	17.5 R25	36300
RTH 8.27	26,60	8000	Scissors	Continuous	Deutz	Stage III	160kW/218HP	40	8.110	2.530	445/65 R22,5	22500
RTH 8.35	34,90	8000	Scissors	Continuous	Deutz	Stage III	175kW/238HP	40	8.000	2.540	445/65 R22,5	24000
RTH 8.39	34,80	8000	Scissors	Continuous	Deutz	Stage III	175kW/238HP	40	8.480	2.540	445/65 R22,5	24000
RTH 8.46	45,60	8000	Scissors	Continuous	Deutz	Stage III	175kW/238HP	25	9.220	2.540	17.5 R25	35300
RTH 10.37	36,70	10300	Scissors	Continuous	Deutz	Stage III	175kW/238HP	25	9.770	2.540	17.5 R25	36900
RTH 13.26	26,20	13000	Scissors	Continuous	Deutz	Stage III	175kW/238HP	25	8.590	2.540	17.5 R25	30600
